shear connector
Arc stud welding machine
Author: View:

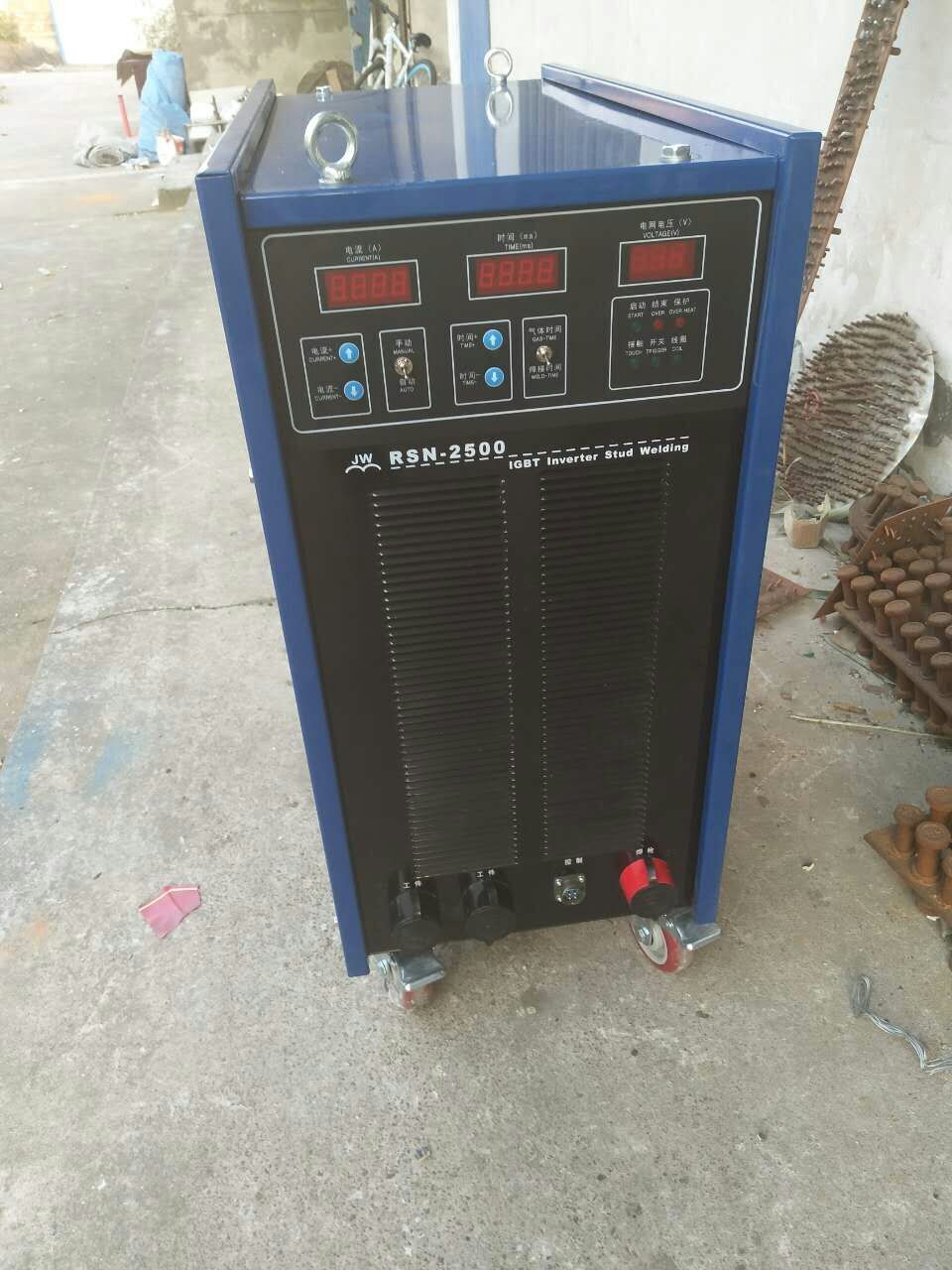

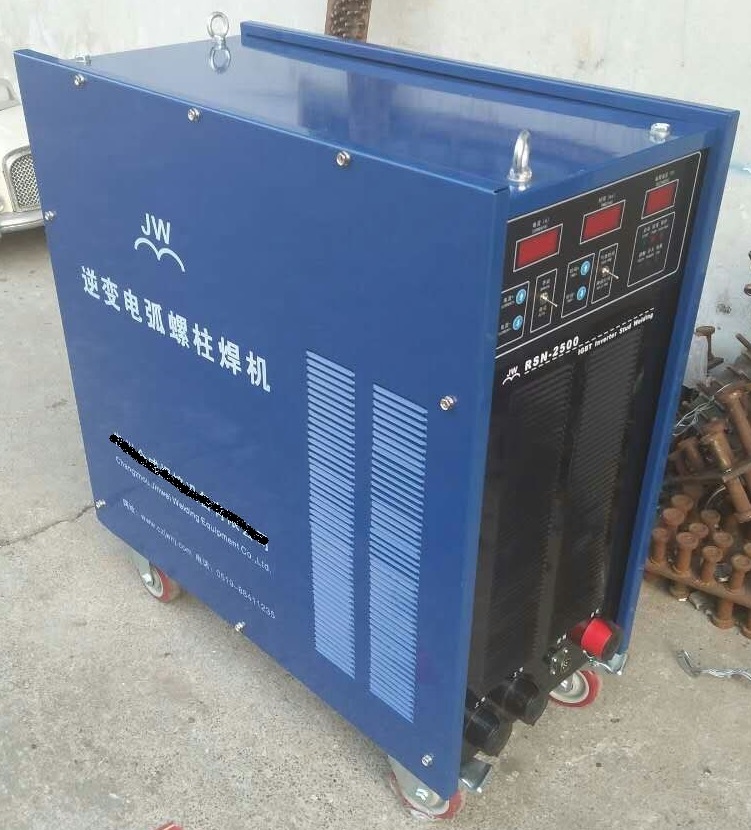

Arc stud welding machine
Model
2500
Supply VoltageV380V±10%
 No-Load VoltageV85V
Welding Gun   VoltageV80-110V
Output RatingKVA90
Rated Welding   CurrentA2500
Input Cable   Area of SectionSquare25
IGBT Brand
INFINEON
Zone of   welding currentA300-2500
Welding RangeФ6--25
 Weld PeriodS1--5
Welding SpeedPCS/MinФ6-Ф10--20pcs/min,Ф12-Ф16---16pcs/min,
    Ф19-Ф22--12pcs/min, Ф25--10pcs/min
Load Rate
≥0.3
Multi-purpose
Can increase the   function of manual welding
 IP Grade
IP21
Cooling Type
Air-cooled
Power
≥0.85
 Power factor
 ≥0.8
Output cable
Ф6-Ф12   can use 25㎡,aboveФ13   use 95

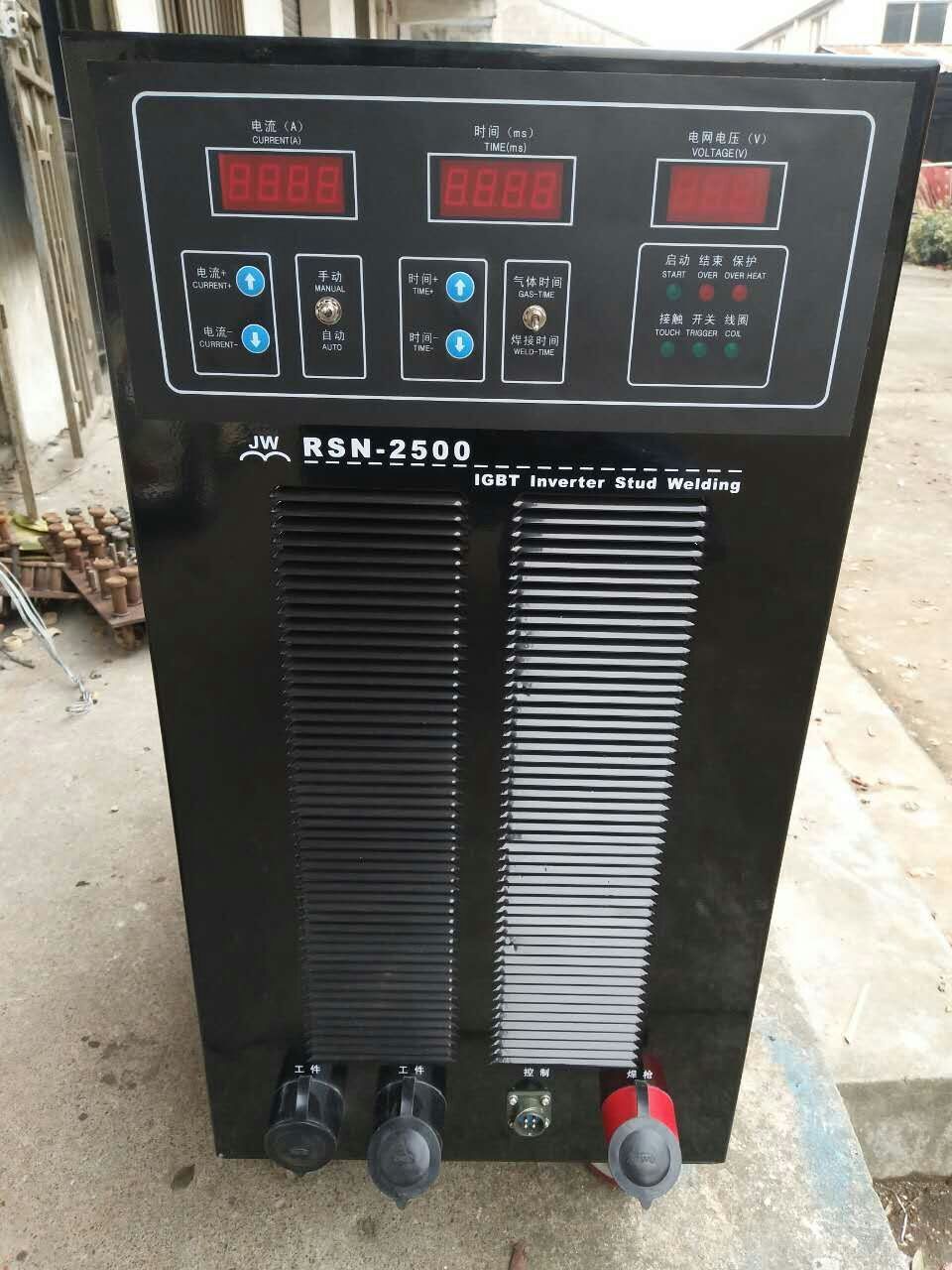

Parameter   Display
 No-Load Voltage,  weld period,ammeter
WeightKg79
Dimensions(LWH)mm700*370*680
Swivel caster
2
Fixed castor
2
Welder   Haft
2

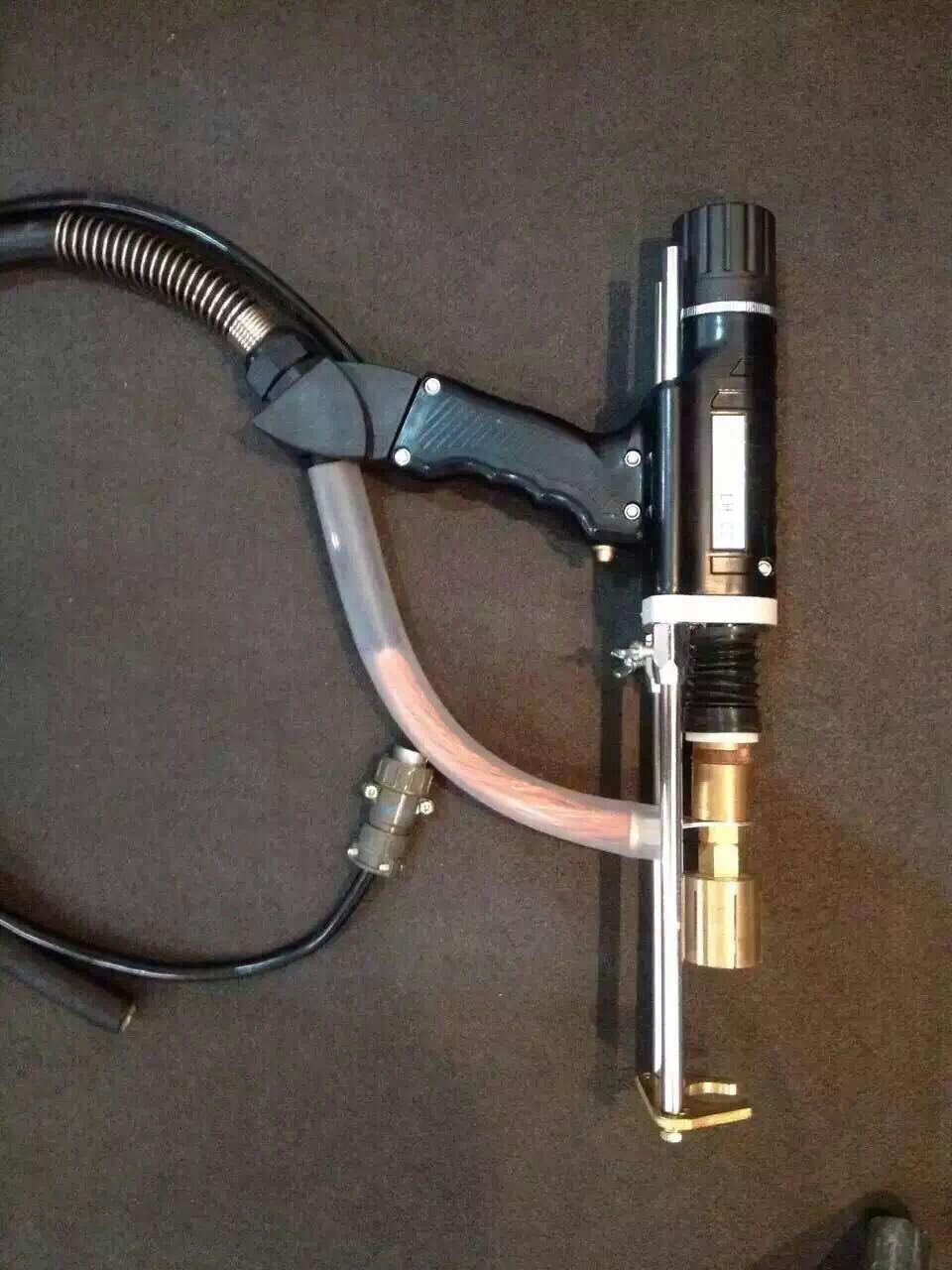

Welder   Standard set 1.A   Host 2.a welding gun(With the cable and the line of control)
    3.A piece of ground(with 5 metres ground clamp)4.a piece of power wire with   3 metres. 5.5 collets 6.fives pieces of binder plate  7.A piece of allen wrench 8.A specification   9.a certification and warranty certificate
Standard of   welder haft line meter 15
Welding   Gun bundle CN-3LH-2 wildcard
FOB Tianjin
4100USD
